YA

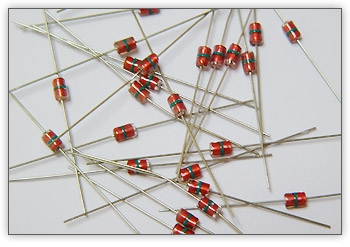

產品名稱 : YA

點小圖放大圖

Application For Power Supplies (YA or YS series)

	Standard power supplies requisite by US UL1449
	Highly reliable power supplies
	Three or two phases industrial or civic machinery equipment power
	Power supplies for IC or electronic circuits
	Surge compressor for switch and relay

For Data Communication Equipment (YA, YS or YP Series)

	Standard protection required by US UL497A and UL497B
	Programmable switch machine
	Telephone
	Fax
	Modem

Equipment with Antenna or Antenna/Signal Circuits including mobile equipment ( YS or YP series)

	Standard protection required by US UL1414
	Satellite Antenna
	Amplifier
	Cassette
	Radio
	Alarm and sensor

Equipment where Anti-static is Required ( YS or YP series)

	Display including TV
	Monitor
	Environment where dusty and flammable material are presented

All kinds of Medical equipment and devices ( YA, YS or YP series)

Part Number	DC Spark-Over Voltage Vs (V)	Insulation Resistance IR (OHM)/DC	Electrostatic Capacitance 1KHZ-6V max C (pf)	Surge current capacity 8/20us	Surge Life Test
YA-141N	140 (98~182)	>100M/50V	<0.8	3000A	8/20us 150A >300Times
YA-231N	230 (161~299)	>100M/100V
YA-251N	250 (175~325)
YA-301L	300 ( 245~345)
YA-351M	350 (280~420)	>100M/250V
YA-501M	500 (400~600)
YA-501N	500 (350~650)
YA-701M	700(560~840)
YA-102M	1000(800~1200)	>100M/500V
YA-152M	1500(1200~1800)
YA-202M	2000 (1600~2400)
YA-242M	2400 (1920~2800)
YA-302M	3000 (2400~3600)
YA-362M	3600 (2880~4320)
YA-402M	4000 (3200~4800)
YA-452M	4500 (3600~5400)	>100M/1000V
YA-502M	5000 (4000~6000)
YA-602M	6000 (4800~7200)
