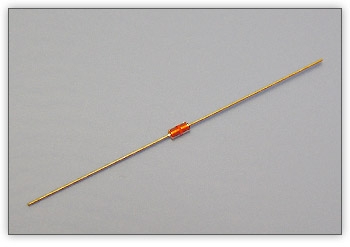

YP

產品名稱 : YP

點小圖放大圖

Application For Power Supplies (YA or YS series)

	Standard power supplies requisite by US UL1449
	Highly reliable power supplies
	Three or two phases industrial or civic machinery equipment power
	Power supplies for IC or electronic circuits
	Surge compressor for switch and relay

For Data Communication Equipment (YA, YS or YP Series)

	Standard protection required by US UL497A and UL497B
	Programmable switch machine
	Telephone
	Fax
	Modem

Equipment with Antenna or Antenna/Signal Circuits including mobile equipment ( YS or YP series)

	Standard protection required by US UL1414
	Satellite Antenna
	Amplifier
	Cassette
	Radio
	Alarm and sensor

Equipment where Anti-static is Required ( YS or YP series)

	Display including TV
	Monitor
	Environment where dusty and flammable material are presented

All kinds of Medical equipment and devices ( YA, YS or YP series)

Part Number	DC Spark-Over Voltage Vs (V)	Insulation Resistance IR (OHM)/DC	Electrostatic Capacitance 1KHZ-6V max C (pf)	Surge current capacity 8/20us	Surge Life Test
YP-141N	140 ( 98~182)	>100M/50V	<0.8	500A	1500pf-0OHM 10KV >200Times
YP-201M	200( 160~240)	>100M/100V
YP-201N	200 (140~260)
YP-231L	230 ( 196~265)
YP-251L	250 (212~287)
YP-301M	300 (240~360)
YP-301N	300 (210~390)
YP-301L	300 (25 ~345)
YP-401M	400 (320~480)	>100M/250V
YP-451M	450 (360~540)
YP-501M	500 ( 400~600)
YP-601M	600 ( 480 ~ 720)
YP-701M	700 (560~480)
YP-102M	1000 (800~1200)	>100M/500V
YP-102N	1000 (700~1300)
YP-152M	1500 (1200~1800)
YP-152M	1500 (1050~1950)
